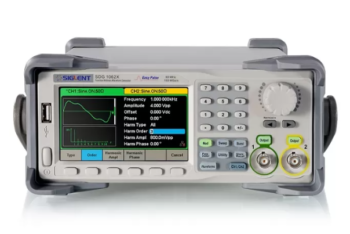

Description 60MHz Bench-top Arbitrary Waveform Generator (AWG) The SDG1062X 60MHz arbitrary waveform generator from Siglent can generate waveforms of up to 60MHz and has 2 independent outputs. It has an easy-to-use user interface, a 4.3″ screen and USB-Host, USB-Device and optional GPIB ports for remote control or uploading custom waveforms via flash disk or PC. Furthermore, this waveform generator offers advanced functions like random noise, frequency sweeping (linear and logarithmic), modulation (AM, FM, PM, FSK, ASK, PWM) and burst mode. The SDG-1062X also has a built-in 200MHz frequency counter. Specifications: Bandwidth: 60MHz Channels: 2 (independent operation) Frequency Range: 1uHz ~ 60MHz Frequency Accuracy: 100 ppm Sampling Frequency: 150 MS/s Output Voltage Range: 4mVpp ~ 20Vpp Vertical Resolution: 16 bit Advanced Features: Playback Modes: Single-cycle, Repetitive, External-Triggered Wave Input Sources: Predefined, GUI software Predefined Waves: Sine, Square, Ramp, Pulse, Gaussian white noise, Arbitrary, 196 predefined waveforms, defined via software Modulation Function: AM, DSB-AM, FM, PM, FSK, ASK, PWM Sweep Function: yes Burst Function: yes Simultaneous TTL Output: yes Frequency Counter: 100MHz ~ 200MHz General: Power source: 100 ~ 240 VAC Computer Interface: USB Host, USB Device, LAN, GPIB (optional) Display: 4.3″ colour TFT-LCD Certification: IEC 61010-1:2010 and EN61326-1:2013 Dimensions (W×D×H): 260mm × 107mm × 295mm Weight: 3.43kg Package Includes The package includes the SDG1062X AWG, Quick Start guide, Calibration certificate, Guarantee card, CD with software and manual, Power cord, USB cable. Have a look at the smaller brother of this AWG, the SDG1032X. Lead time: - 15 working days Please enquire for an updated price.
