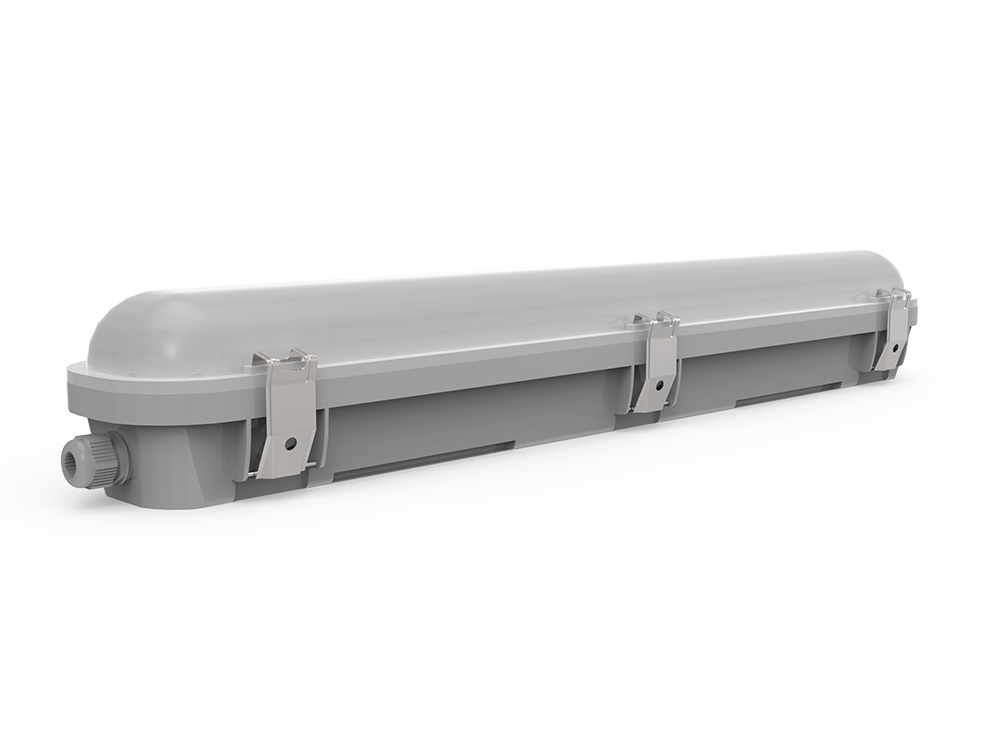

SBATTEN22WP is our compact-size standard weatherproof batten, a general lighting product suitable for most applications. Fitted in elegant PC housing with solid stainless-steel clips, SBATTEN22WP delivers high light output with low glare-distribution and is an excellent replacement for fluorescent battens without compromising performance. Additionally, our easy to install wiring allows you to surface mount SBATTEN22WP on wall or ceiling in minutes. Should you need other sizes and wattages, be sure to check out E&E’s 1200mm and 1500mm LED weatherproof battens. Main Features 20W 600mm Batten Wall or Ceiling Surface Mount IP65 Weatherproof Rating Large Terminal Block Optional Microwave Sensor Optional Flex and Plug Technical Specifications Ordering Information Carton Qty 6 pieces Weight 1.1kg (unit) – 6.6kg (box) Dimension (L X W X H) 670mm x 85mm x 95mm Technical Specifications Voltage (V); Frequency (Hz) 220-260Vac; 50Hz Operating Temperature -25° – 45° C IP Rating IP65 IK Rating IK10 Wiring Large Terminal Block Mountain Type Wall or Ceiling Surface Mounted Construction Polycarbonate Body and Diffuser Standards AS/NZS 60598.1 EMC
