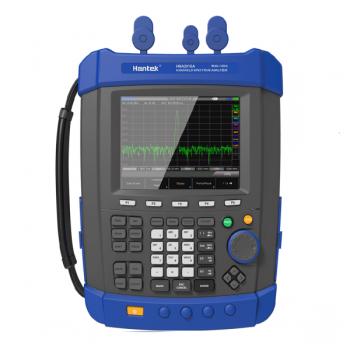

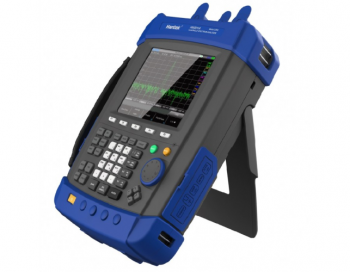

Description 3.2 GHz Handheld Digital Sweeping Spectrum Analyzer The HSA2030 handheld Spectrum Analyser is a full-featured sweeping spectrum analyzer from Hantek. This spectrum analyser features a frequency range from 9 kHz up to 3.2 GHz. It is a lightweight and small handheld SSA, with a user-friendly user interface, concise style of display, reliable measurement precision and plenty of RF measurement functions. Applicable to research and development, education, production, maintenance and other related fields, that meets a wider range of application requirements. The built-in large-capacity rechargeable lithium battery can work for more than 4 hours, making it ideal for fieldwork. Besides USB, it also features optional LAN communication for long-range control. The Hantek HSA2030 handheld Spectrum Analyser becomes an excellent assistant for the electronic- and RF engineer. HSA2030 Features and Specifications: Frequency range: 9KHz ~ 3.2GHz (tunable to 9KHz) AC Coupled Optimal sensitivity: -161dBm RBW:10Hz ~ 1MHz Frequency resolution: 1Hz Reference Frequency: 10MHz Frequency Readout Accuracy: ±(frequency indication x frequency reference uncertainty 1% x span 20%RBW marker resolution 1Hz) Internal 10MHz Reference Accuracy: Aging rate: ±1ppm/year (0℃~50℃，Reference is 25℃) ; Temperature stability: ±1ppm/year Marker Resolution: (Frequency span)/(number of sweep points-1) Resolution Bandwidth (RBW): -3dB Bandwidth: 10Hz ~ 1MHz, in 1-3-10 sequence Resolution Accuracy: ±5% RBW=10Hz~1MHz nominal Resolution Filter Shape Factor: <5:1 nominal Video Bandwidth: 1Hz ~ 1MHz, in 1-3-10 sequence Displayed Average Noise Level (DANL): -108 dBm/Hz ~ -158dBm/Hz SSB Phase noise: < -92 dBc/Hz ~ -117 dBc/Hz Sweep Time: 2ms ~ 1000s Frequency Counter Resolution: 1Hz Optional FM/AM modulation analysis, including carrier power, modulation rate, AM depth/FM deviation, SINAD and carrier frequency offset. Standard spectrum feature. It can analyze the signal time stability, and find out lacunar signals in a communication system accurately. Strong field strength test function, fit for the test work in transmitter, base station and the antenna coverage site. It can show the density of field strength or power. The user could also calibrate gain or loss by using the amplitude offset function. Least RBW in this level of spectrum analyzers, and can easily confirm, distinguish and measure two similar signals. Short scanning time. It can fast catch the data and help to locate and recognize the irregular transient disturbance signal and then optimize the testing time and accuracy. Display: 5.6 inches colour, 640×480 resolution Integration of USB Host & Device, support USB flash disk memory, with optional WIFI/LAN, which is convenient for networking and long-range control. Its PC software can achieve the management and storage of testing data. The Spectrum Analyser package includes: HSA2030 3.2GHz handheld Sweeping Spectrum Analyser, power cable, protective case, CD with software and documentation. Lead time: - 15 working days Price: enquire for price
