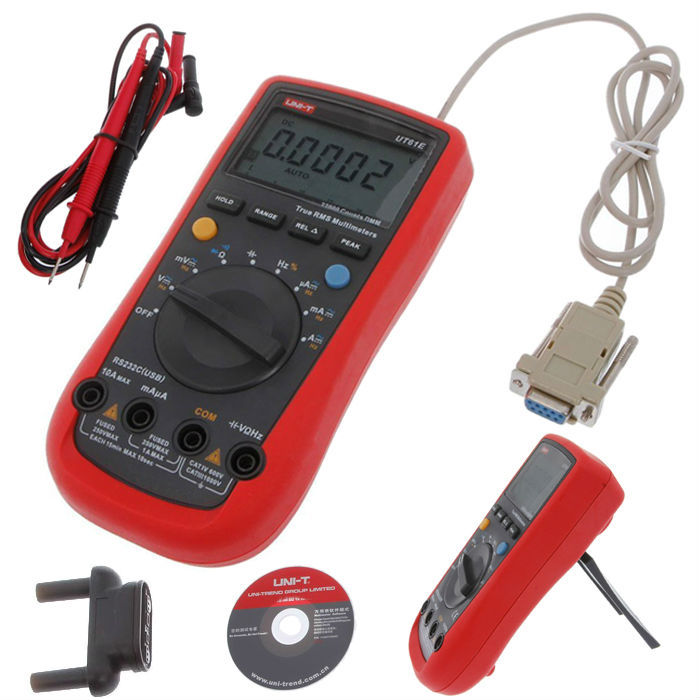

Description High-End Digital Multimeters with Isolated RS232 / USB Interface The Uni-T UT61E is a feature-packed high-end digital multimeter with optional USB Interface. It has auto- and manual range selection and, in addition to measuring the expected resistance, AC/DC voltage & current and diode/continuity, it can also measure frequency and capacitance. The UT61E has a 5-digit large numeral display with a maximum display value of 22000. The UT61E is a very versatile multimeter, with reliable reading across all its measurements with a very small error range. Specifications: Basic Functions: DC Voltage 0.01uV ~ 1000VDC VAC Voltage 0.01uV ~ 750VAC Current 001uA ~ 10A DC Current 0.01uA ~ 10A Resistance 0.01Ω ~ 220MΩ Capacitance 0.001nF ~ 220mF Frequency 0Hz ~ 220MHz Frequency Response 0.45Hz ~ 10kHz Duty Cycle 0.1% ~ 99.9% Special Functions: Auto & Manual Ranging Diode True RMS Continuity Buzzer Data Hold Peak Value Min/Max Mode Display Backlight REL Sleep Mode: 15 minutes Analogue Bar Graph RS232 interface Optional USB interface Input Protection Low Battery Display Max Display: 22,000 General: Power 9V Battery LCD Size 65 x 43mm Product Colour Red and Grey Product Net Weight 370g Product Size 180 x 87 x 47mm Multimeter Package Includes: UT61E Digital Multimeter, Test Lead, English Manual, Multi-Purpose Socket, RS232 Interface Cable, Software. Please note: to use with a USB interface, you will need the optional USB Interface Cable. Client Testimonial of the UT61E Multimeter: “I put this DMM through its paces and measured its DC volts and resistance accuracy against my own calibration source and my Fluke 179. It came out very well, and exceeded its accuracy claims.” Please note: This product has been discontinued.
