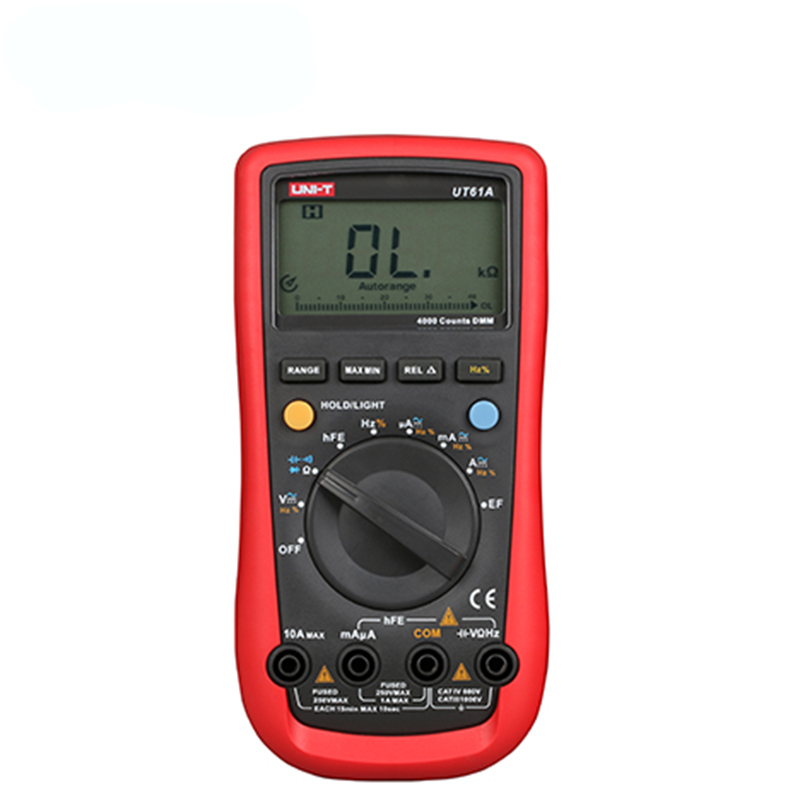

Description Mid-range Digital Multimeters The UT61A is a feature-packed mid-range digital multimeter produced by Uni-T. It has auto- and manual range selection and, in addition to measuring the expected resistance, AC/DC voltage & current, and diode/continuity, it can also measure frequency and capacitance. The UT61A Multimeter has a 4-digit numeral display with a maximum display value of 4000. The UT61A offers reliable reading across all its measurements with a very small error range. Specifications: Basic Functions: DC Voltage 400mV ~ 1000VDC VAC Voltage 400mV ~ 750VAC Current 400mA ~ 10A DC Current 0.01uA ~ 10A Resistance 400Ω ~ 40MΩ Capacitance 40nF ~ 4000mF Frequency 10Hz ~ 10MHz Frequency Response 45Hz ~ 400Hz Duty Cycle 0.1% ~ 99.9% Special Functions: Auto & Manual Ranging Diode EF Function Audio On Continuity Buzzer Data Hold Min/Max Mode Display Backlight REL Analogue Bar Graph Input Protection Input Impedance for DC Low Battery Display Max Display: 4000 General: Power 9V Battery LCD Size 65 x 43mm Product Colour Red and Grey Product Net Weight 370g Product Size 180 x 87 x 47mm Multimeter Package Includes: UT61A Digital Multimeter, Test Lead, English Manual, Multi-Purpose Socket.
