VGA Breakout Adapter

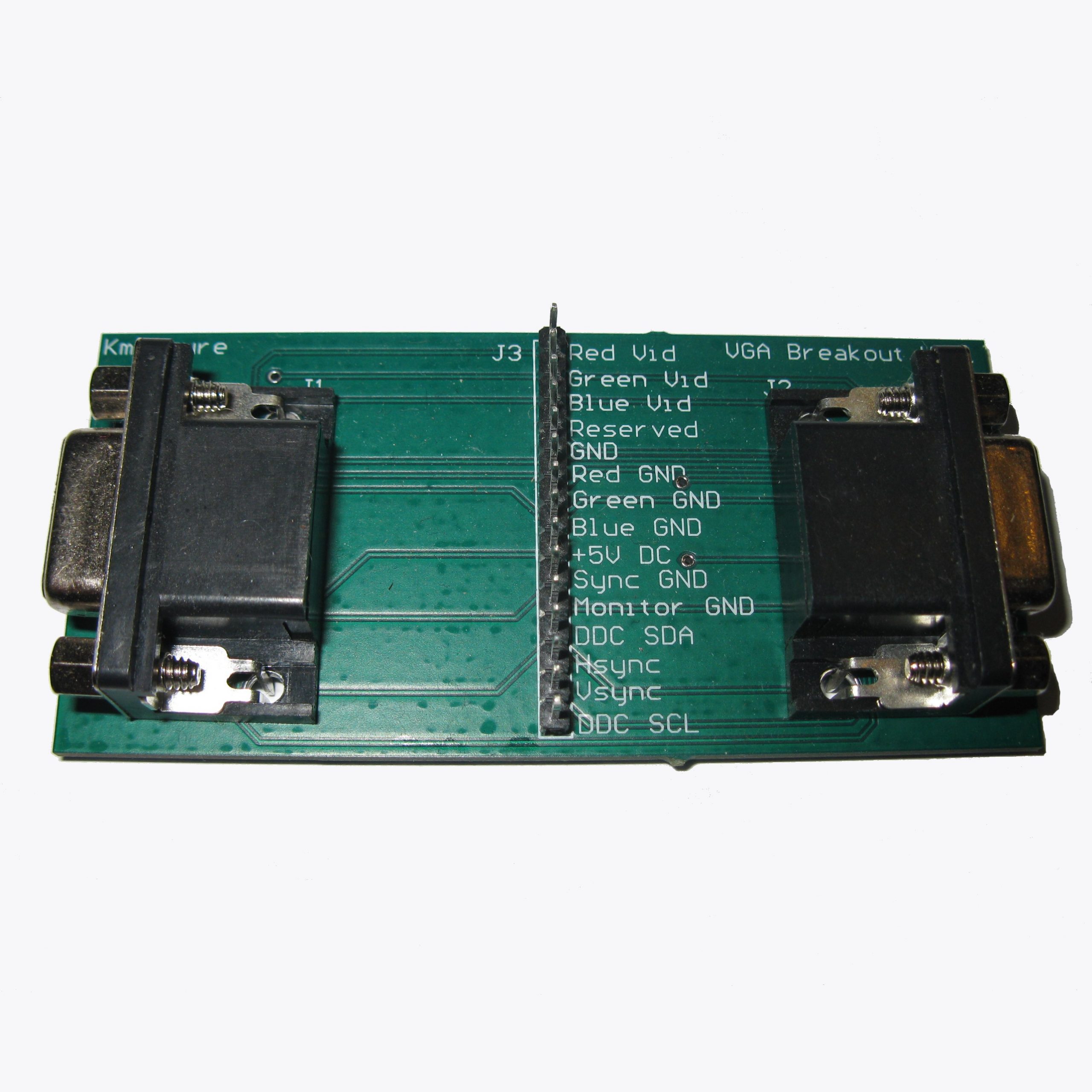

Description VGA Breakout Adapter This board connects to standard VGA cables (15pin male) on both sides and breaks out every one of the VGA signals to a single inline (SIL) connector for easy viewing on an oscilloscope or logic analyser. Next to each pin on the SIL connector is the name of the VGA signal it breaks out. Signals: Red Video Green Video Blue Video ID2 / Reserved Gnd Red Gnd Green Gnd Blue Gnd 5V DC Sync Gnd Monitor / Reserved I2C-SDA Hsync Vsync I2C-SCL
