USB Breakout Adapter

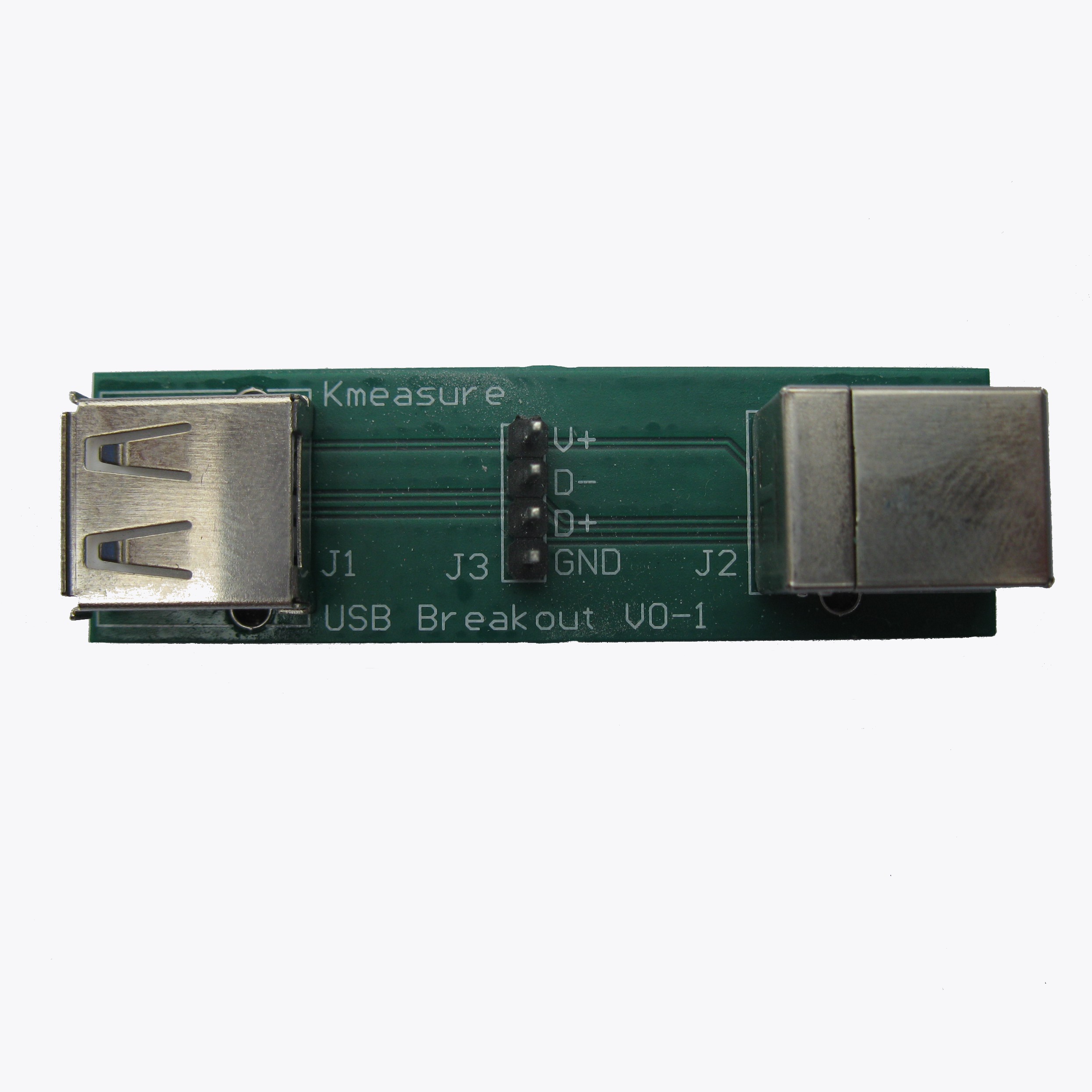

Description USB Breakout Adapter This adapter connects in line with a USB cable and breaks out the USB signals to a standard 4-pin single inline connector for easy viewing on an oscilloscope, logic analyser or protocol analyser. On the one end it connects to a USB Type-A cable (the cable that would typically plug into a computer) and on the other side, it connects to a USB Type-B (the side of the cable that would typically connect to a device, e.g. printer). Signals: 5V Supply Data Data- Gnd
