Boxed Header Breakout Adapter

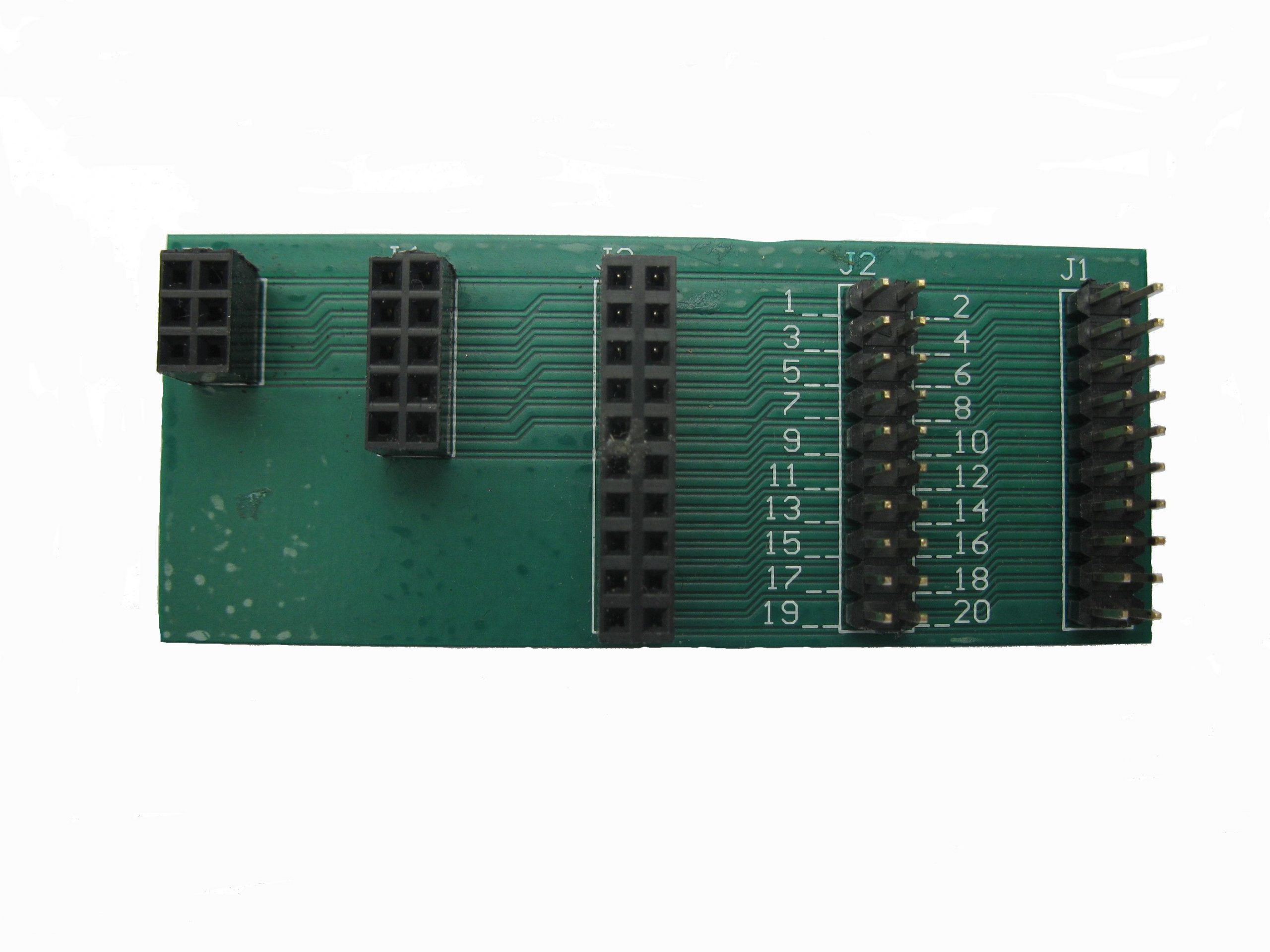

Description Boxed Header Male & Female Breakout Adapter This PCB connects in line with a standard 2.54mm male or female 20-pin header connector and breaks out the 20 pins into a separate 20-pin dual inline (DIL) connector for easy viewing on an oscilloscope or logic analyser. In addition to the 20-pin DIL connector, it also has a 10-pin and 6-pin connector. Signals: 2 ~ 20
