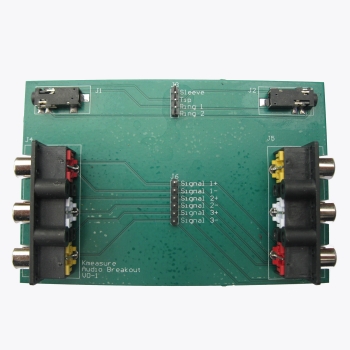

Description Audio & Video Breakout Adapter This adapter connects in line with audio and video cables, for example running to a TV, to enable easy viewing of the signals with an oscilloscope or other test equipment. The video signals use the standard Red, White and Yellow RCA connectors and the audio signals use 3.5mm audio jack connectors. Audio Signals: Sleeve Tip Audio1 Audio2 Video Signals: Signal 1 Signal 1- Signal 2 Signal 2- Signal 3 Signal 3-
