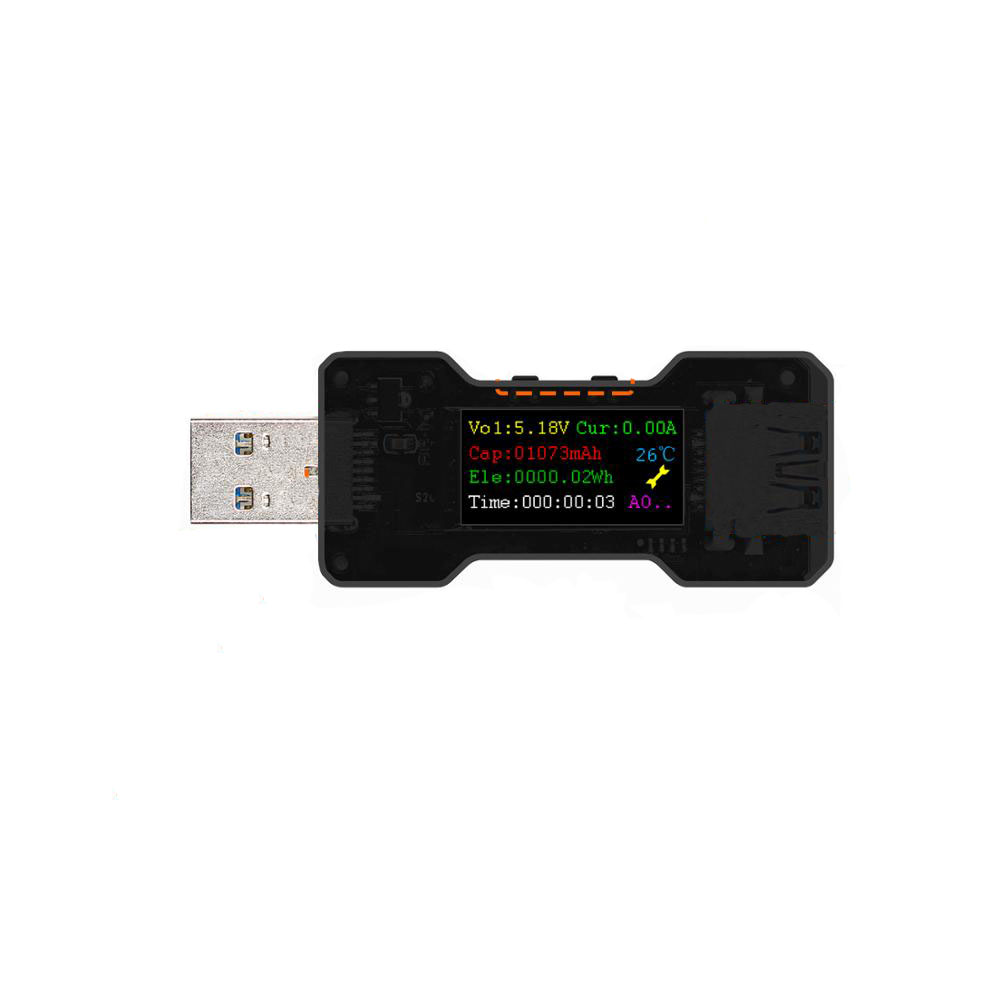

Description USB Power Analyser The FNB18 is a USB Power Analyser designed for testing the health of gaming controllers, rechargers, USB disks, data cables, power banks, mobile phones, etc. It offers real-time detection of the state of charge of the appliance – showing voltage, current, power, temperature and other indicators at a glance. It uses a high-definition colour LCD display to display the state of charge of the appliance. Features: Input Interface: USB Output interface: USB Timed charge reminder settings: 24-hour countdown Full charge threshold parameters: < 2 W / 0.5 hours Refresh time: > 500mS / time Measurement rate: ~0.5 samples per second Alarm mode: siren sound Display type: micro-power LCD module, LCM white font in English Product dimensions: 76 x 30.5 x 15.6 mm Current consumption: < 0.02 A Operating temperature: -10 to 60 °C Working humidity: 10 to 80 (no doubt) Work oppression: 80~106 Kpa Technical Specifications: Voltage: 3.6~32V (0.01 V resolution) Current: 0~5A (0.01 A resolution) Capacitance accumulation: 0~99999 mAh (0.001 Ah resolution) Power: 0~160W (0.01 W resolution) Impedance: 0~6000.0 Ω (0.1 Ω resolution) Temperature: 0~ 100 °C (1 °C resolution) Timing time: 999H 59M 59 S (1 S resolution) USB D voltage: 0~3.30 V USB D- voltage: 0~3.30 V USB Power Tester Package Includes: FNB18 USB Power Analyser, User Manual.
