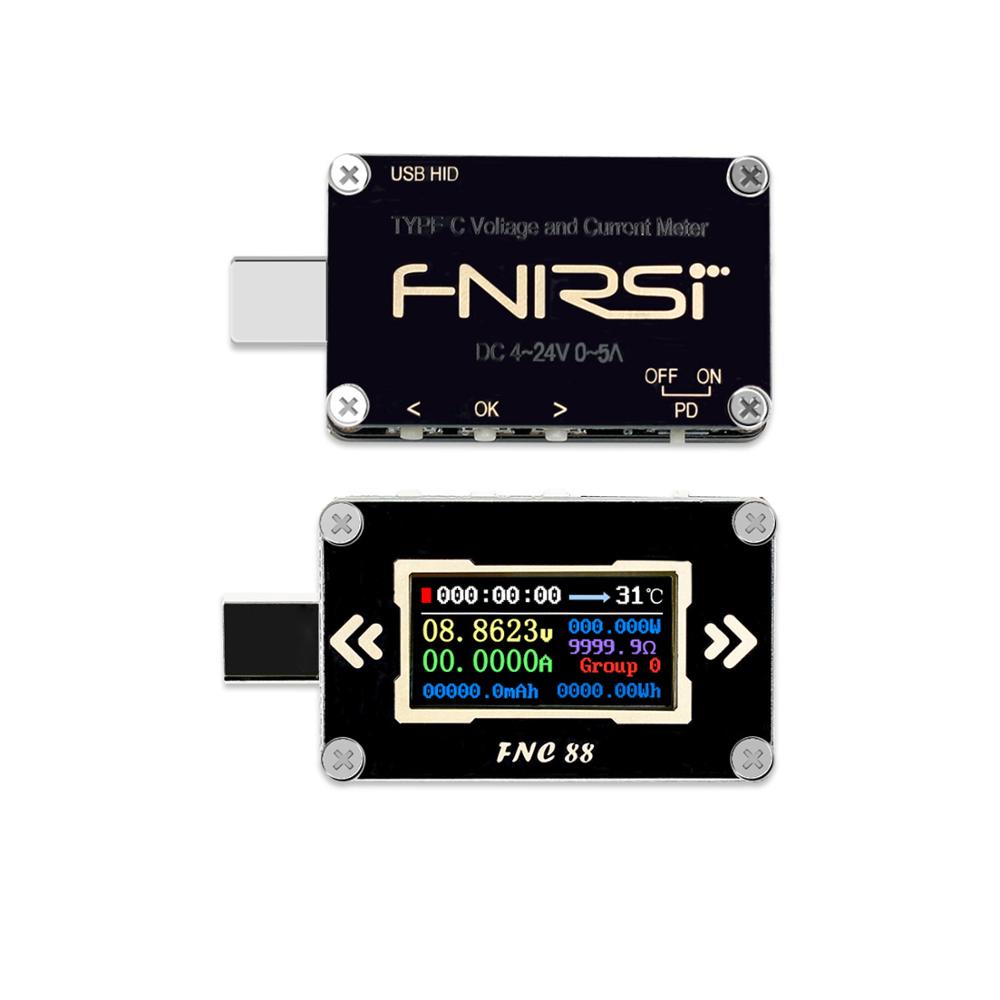

Description USB-C Power Analyser The FNIRSI FNC88 is a USB-C Power Tester designed for testing the health of chargers, USB disks, data cables, power banks, mobile phones, gaming controllers, etc. It offers real-time detection of the state of charge of the appliance – showing voltage, current, power, temperature and other indicators at a glance. It uses a 0.96-inch high-definition colour LCD display to display the state of charge of the appliance. Features: Built-in thermal sensor Software update support Fast charging autotest Bilateral current detection (data can be measured separately via USB plug and mobile phone) Power off storage: store capacity and energy data in case of accidental cutt off of power Type-C USB interface Technical Specifications: Voltage: 0~24V Current: 0~5A Current measurement accuracy: ± (1% 2LSB) at 25°C Power: 0~120W Resolution: 0.0001 V / 0.0001 A / 0.01 W Capacitance: 0-99999,9 mAh (5 sets) Energy: 0~9999,99 Wh (5 presets) Interface: USB-C in, USB-C out, MicroUSB HID Trigger: Qualcomm QC2.0/QC3.0/Huawei FCP/SCP/Samsung AFC/PD3.0/2.0 Memory: 5 presets Timer: 0~999 h: 59 min: 59 s D /D- data line voltage: up to 3,3 V CC1/CC2 line voltage: up to 3,3 V Temperature measuring range: 0~65 °C Display: colour LCD, 0.96 inches USB-Tester Package Includes: FNIRSI FNC88 USB-C Power Analyser, Metal case, QR code for Instruction Manual.
