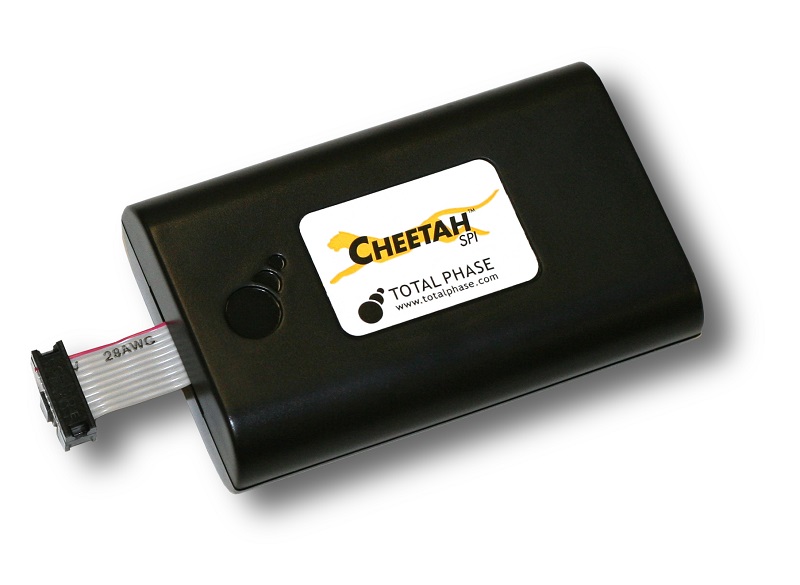

Description Ultra-Fast USB to SPI Bus Converter Communicating on an SPI bus with speeds up to 40MHz, the TotalPhase Cheetah SPI Host Adapter is specifically designed for systems with high-speed SPI memory. This SPI bus converter is an ideal tool to develop, debug, and program SPI-based systems. It includes an API supporting a whole list of languages plus Labview drivers. The SPI converter is suited to be used in the test lab environment as well as manufacturing and automated testing. SPI Converter Specifications: High-Speed SPI Master signaling at up to 40 MHz (overclocking up to 50 MHz) Transaction Queuing for Maximum Throughput Full Duplex operation Fully Linux and Windows Compatible Royalty-Free API 3 Slave Select (SS) pins SPI Converter General Specifications: High-speed USB interface USB bus-powered Software configurable power output to power downstream devices (5V @ 30mA). 3V and 5V compatible. ESD protection on all pins Firmware is field-upgradable OS support for Windows, Linux, and Mac. The SPI Bus Converter Package Includes: Cheetah SPI Adapter, USB cable, SPI data cable, CD with converter software, drivers, code examples, and documentation.
