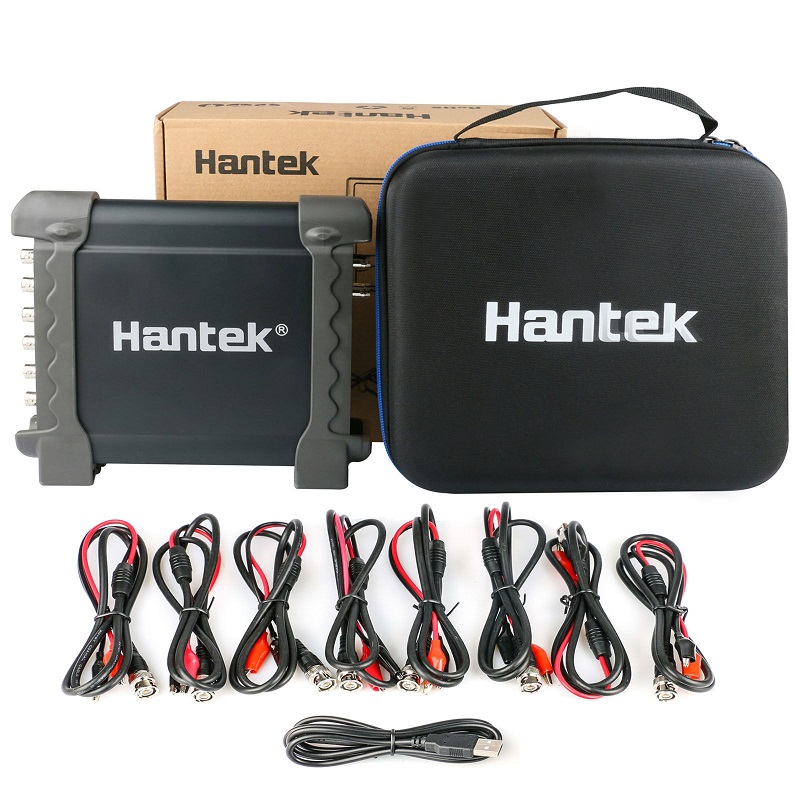

Description 8-Channel PC-based Automotive Diagnostic Oscilloscope The Hantek-1008B 8-channel USB Oscilloscope for vehicle testing offers over 80 types of automotive diagnostic functions. Among them are Ignition, Sensor, Bus detection, Performance, Starter, Charging circuits, etc. Online Video Help-Function & Help Videos are available. Diagnostic reports can be printed or screenshots taken by pushing one key, with many methods to save the data. Recording of waveforms is supported. The Hantek1008B can simulate camshaft and crankshaft signals. It can transmit signals through USB 2.0 interface plug-and-play, with no need for an extra power supply. Product features: 8 Channels Maximum real-time Sample Rate 2.4MSa/s Max Memory Depth 4K points Max Input 400V (DC AC Peak) Input Impedance 1Mohm Input Sensitivity 10mV/div ~ 5V/div Pass/Fail FFT 20 Automatic Measurements Automatic Cursor tracking Measurements Waveform storage, record, and replay dynamic waveforms User-selectable fast offset calibration Mathematic functions: Add, subtract, multiply, divide Selectable 20 MHz Bandwidth limit Programmable Signal Generator: 0~250kHz Adjustable waveform intensity, more effective waveform view Vehicle Diagnostic: Primary Ignition (Voltage) Primary Ignition (Current) Primary Ignition (Voltage & Current） Primary Ignition (Crankshaft Sensor) Primary Ignition & Secondary Ignition Secondary Ignition Distributor Type (Plug Lead) Secondary Ignition Distributor Type (King Lead) Secondary DIS (Positive-fired) Secondary DIS or CPC (Negative-fired) Secondary Coil Output Diagnosis Secondary Ignition & Primary Ignition Air Flow Meter (Hot Wire) Air Flow Meter (Air Vane) Air Flow Sensor (BOSCH Diesel) Air Intake Pressure Sensor (BOSCH Diesel) Camshaft (Inductive) Camshaft (AC Excited) Camshaft (Hall Effect) Camshaft (BOSCH Common Rail Diesel) Crankshaft Inductive Running Crankshaft Inductive Cranking Crankshaft Hall Effect Crankshaft Sensor &Primary Ignition Distributor Pick-up (Hall Effect) Distributor Inductive Pick-up Cranking Distributor Inductive Pick-up Running Lambda Sensor Titania Lambda Sensor Zirconia Lambda Sensor Zirconia Pre & Post cat Throttle Position Potentiometer Throttle Position Switch Throttle Pedal Switch (Bosch Diesel) ABS Digital Speed Sensor ABS Analog Speed Sensor Coolant Temperature (5V) Coolant Temperature (GM/Vauxhall Simtec) Crash Sensor MAP Analog MAP Digital Hall Effect Road Speed Sensor Accelerator Pedal (Bosch Diesel) CAN Bus Data View CAN Bus Signal Integrity CAN Bus LH Long Capture LIN Bus Single-point Injector (Voltage) Single-point Injector (Current) Multi-point Injector (Voltage) Multi-point Injector (Current) Injector Voltage & Current Injector Current & Primary Ignition Common Rail Diesel (Current) Injector Bosch CDi 3 (Current) Injector Bosch Diesel (Idling) Injector Bosch Diesel (Accelerating) Diesel Glow Plugs Electronic Fuel Pump Carbon Canister Solenoid Valve ERG Recirculation Solenoid Valve Stepper Motor Example 1 Stepper Motor Example 2 Idle Speed Control Valve (Rotary) Idle Speed Control Valve (Electromagnetic) Throttle Servomotor (Idling) Throttle Servomotor (Accelerating) Bosch CDi3 Quantity Control Valve Bosch CDi3 Pressure Regulator Valve Variable-Speed Cooling Fan On Variable-Speed Cooling Fan Off Variable Camshaft Valve Timing Charging Circuits Current/Voltage Charging Circuits Current/Voltage Starting 24V Charging Circuits Current/Voltage Idling 24V Charging Circuits Alternator AC Ripple/Diode Diagnosis Relative Compression Petrol Relative Compression Diesel Starting Voltage Drop The Hantek-1008B Oscilloscope Package Includes: Hantek1008B, 8 BNC-crocodile Test Probes, USB cable to connect the oscilloscope to your PC, User Manual, PC-Software CD, and protective case. Also, see the Hantek1008C Automotive Oscilloscope. Please note: These two are the same model, except that the Hantek1008C includes the HT25 Auto Probe in the package.
